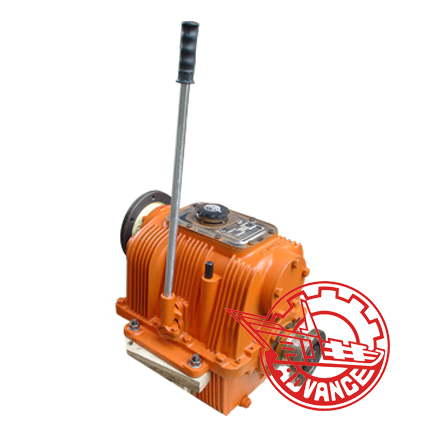

Description: Marine Gearbox 26 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is mechanically controlled, featuring in small in volume and light in weight.
Main Data:
Input speed | 1000-2500r/min | ||
Reduction ratio | 2.5、3 | Trans. capacity | 0.0199kw/r/min |
3.5 | 0.0190kw/r/min | ||
4 | 0.0177kw/r/min | ||
Control way | Manually | ||
Rated thrust | 5KN | ||
Center distance | 135mm | ||
L×W×H | 473.5×365×830mm | ||
Net weight | 92kg | ||
Flywheel | 4105C | ||
Bell housing | 4105C | ||
Application: :Marine Gearbox 120B is suitable for small fishing, transport, traffic and rescue boats.
